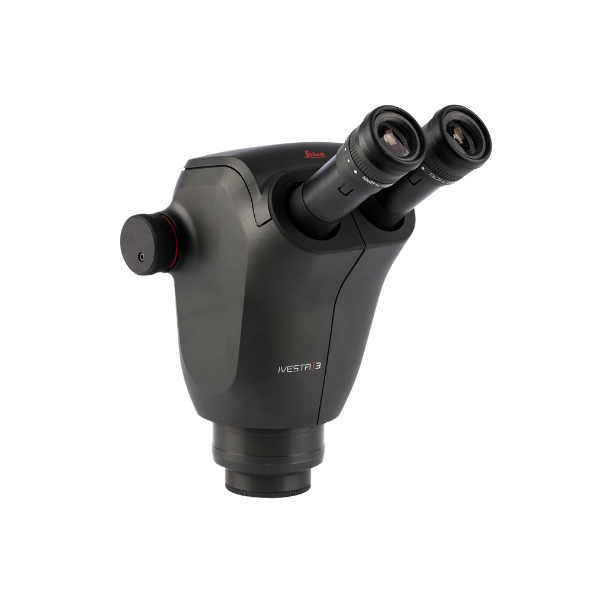

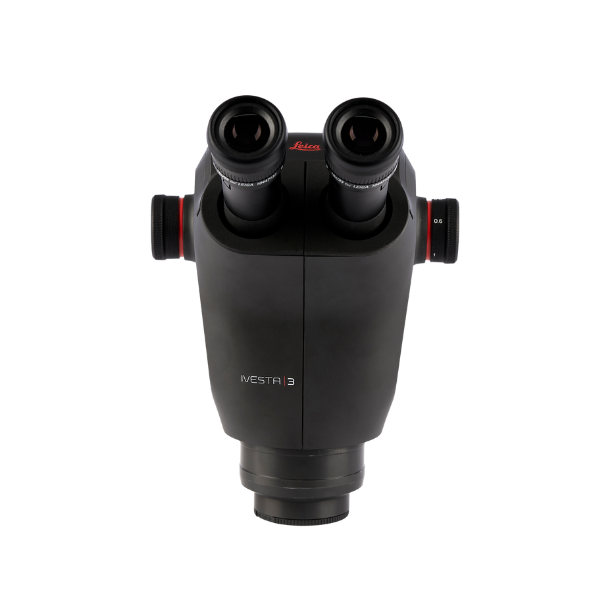

Leica Ivesta 3 Stereo Microscope with KL300 Fiber‑Optic Illumination

The Leica Ivesta 3 Stereo Microscope with KL300 fiber‑optic illumination is optimized for inspection tasks where lighting direction and surface contrast are critical. This configuration is well suited for applications involving reflective, textured, or low‑contrast components where
illumination geometry plays a key role in inspection accuracy. At the core of the system is Leica’s FusionOptics technology, which combines high resolution with an extended depth of field to improve 3D perception and reduce refocusing. The microscope offers a 9:1 zoom ratio with a 6.1×–55× magnification range, supporting efficient movement from overview inspection to detailed surface evaluation.

A 122 mm working distance provides ample clearance for tools and sample manipulation, making this system well suited for manual rework and defect inspection in Canadian manufacturing and electronics environments.

The microscope is mounted on a 200 mm S‑Line focus column and paired with a KL300 LED fiber‑optic light source and 600 mm single gooseneck. This setup allows precise positioning of incident light to enhance surface contrast and reveal fine details that may not be visible with fixed LED illumination.

Key Features & Benefits

• FusionOptics Technology – Enhanced depth of field and image clarity for surface inspection.
• 9:1 Zoom Range (6.1×–55×) – Efficient transitions between overview and detail.
• 122 mm Working Distance – Comfortable clearance for tool‑assisted rework.
• KL300 Fiber‑Optic Illumination – Directional lighting control for reflective and low‑contrast samples.
• S‑Line Focus Column – Stable vertical positioning for repeatable inspection.

Typical Applications

• Surface defect inspection and finish evaluation
• Manual rework and repair operations
• Inspection of reflective or low‑contrast materials
• Precision manufacturing and electronics
